Description:Vibrating feeder is a new type heavy-duty feeder which uses the vibration and gravity to push the material forward. It can transport the large stone materials uniformly, regularly and continuously to rock crusher machine from the hopper.
Application:It widely used in metallurgy, coal mining, mineral processing, building materials, chemicals, abrasives, and other industries in the crushing, screening and joint equipment.

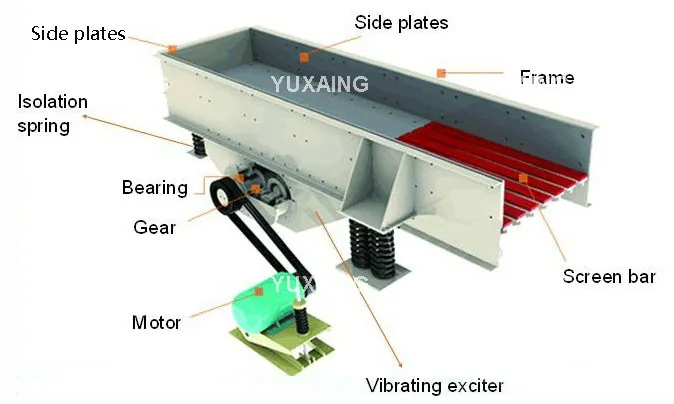

The vibrating feeder is made up of side plates, frame, bearing, gear, motor and vibrating exciter.
|
Model |
Trough |
Max feed |
Capacity (t/h) |
Motor Power(kw) |
|
ZSW-650*2500 |
650*2500 |
300 |
50-80 |
5.5 |
|
ZSW-850*3000 |
850*3000 |
400 |
80-120 |
7.5 |
|
ZSW-960*3800 |
950*3800 |
500 |
120-210 |
11 |
|
ZSW-1100*4200 |
1100*4200 |
580 |
200-430 |
15 |
|
ZSW-1100*4900 |
1100*4900 |
580 |
280-500 |
15 |
|
ZSW-1300*4900 |
1300*4900 |
650 |
450-600 |
22 |
*just for reference
