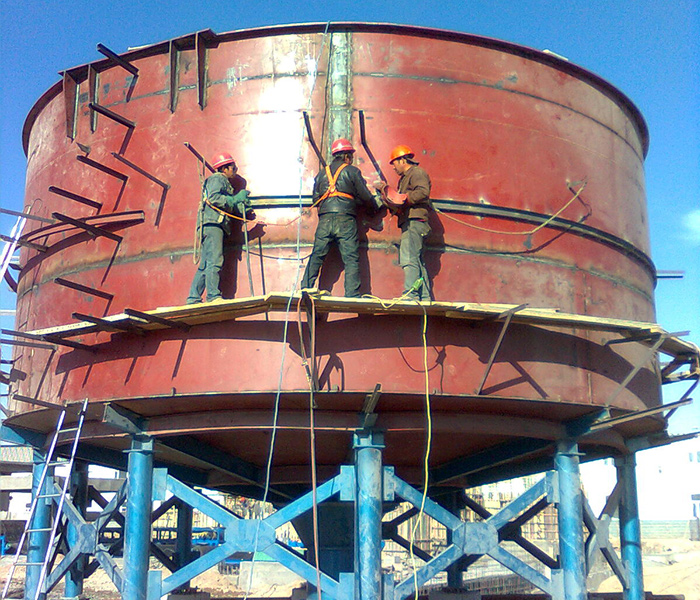

Thickener

Product Description:Thickening or dewatering may be defined as the removal of a portion of the liquid from a pulp or slime made up of a mixture of finely divided solids and liquids.

Product Application:It is mainly used for the concentration of concentrates and dewatering of tailings in ore dressing plants.

Send Email Get A Quote

Feature

  • Adding flocculants increases the particle size of settling solid particles, thereby accelerating the settling speed;
  • Install inclined plates to shorten the settling distance of ore particles and increase the settling area;
  • Give play to the role of flocculation, filtration, compression and improving the treatment capacity of the mud sediment dense phase layer;
  • Equipped with complete automatic control facilities.

Working Principle

The thickener is mainly composed of round concentration basin and rake scraper. the solid particles hanging in the thickener fall down with the function of gravity, the pulp in the upper turn into clean water, so that the separation can be realized. The slurry deposited on the bottom of the concentration basin is discharged by the rake scraper to central discharging continuously, and the clean water will overflow along the upper edge of the concentration basin.

Technical Parameter

Specification

Thickening tank

Sedimentation area(m2)

Rotation of rake(r/min)

Motor

Capacity

(t/d)



Diameter

(m)

Depth(m)





Model

Power



NZS1

1.8

1.8

2.55

0.5

Y9CL-6

1.1

1.3-5.6

NZS2.5

2.5

1.8

4.9

0.33

Y9CL-6

1.1

5-10.8

NZS3

3.6

1.8

10.2

0.33

Y9CL-6

1.1

5-22.4

NZS6

6

2.95

28

0.3

Y9CL-4

1.5

14-62

NZS8

8

3.318

50.2

0.27

Y132S-6

3



NZS9

9

3

63.5

0.25

Y132S-6

3

32-150

NZS12

12

3.6

113

0.19

Y132S-6

3

250

NZSG-2.5

2.5

1.85

4.9



Y9CL-6

1.1

5-22.4

NZSG-3A

3

1.8

7



Y100L-6

1.5

5-23.4

NZSG-3

3.6

1.8

10.2



Y100L-6

1.5

5-25

NZSG-5

5

2.956

16



Y9CL-4

1.5

16-90

NZSG-6

6

2.956

28.3



Y9CL-4

1.5

98

NZSG-7

7

3

38.5



Y112M-6

2.2



NZSG-8

8

3.318

50.2



Y132S-6

3



NZSG-9

9

3.376

63



Y132S-6

3

210

NZSG-12

12

3.6

113



Y132S-6

3

370

NZSG-15

15

3.6

176



Y132M2-6

5.5

580

NZSG-18

18

4.4

255



YCT200-413

7.5

960

NZSG-20

20

4.4

315



Y160M2-8

7.5

1400

*just for reference
