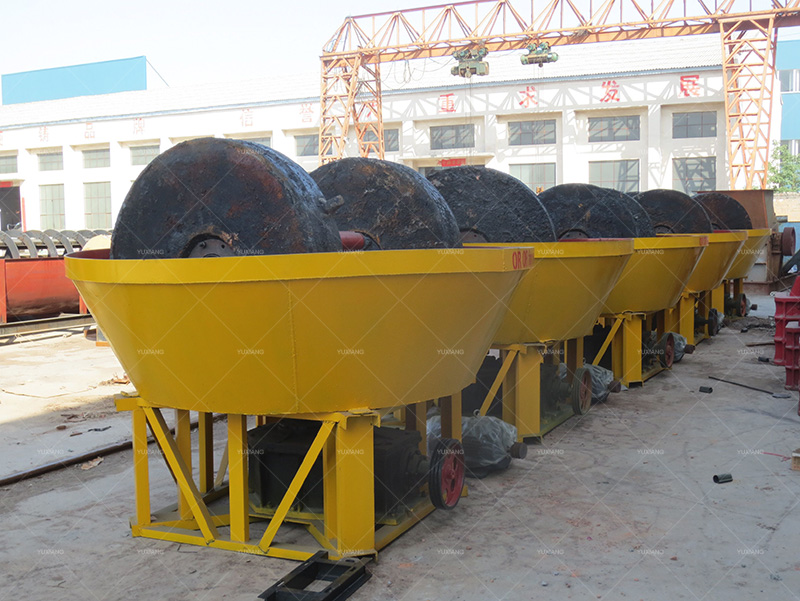

The operation of WET PAN MILL/ROUND MILL
.
1.Firstly the motor of the gold ore wet pan mill will transmit the motive power to reduction gears under the drive of reduction gears that passing through the large vertical spindle, then the power cabinet transfers to the above whippletree.
2.The whippletree pulls the two runner wheels clockwise rotation, and runner wheels are not only revoluting around the large vertical spindle but also could rotating by themselves.
3.After adding into ore, the materials are under the extrusion of grinding roller weight to revoluting and rotating with runner wheels. When twisting that coming into being huge friction force with grinding base, after suffering repeated extrusion, rub, grinding that be crushed thoroughly.
4.Under the effection of grinding roller operating, the crushed materials and the water mixed intensively to float on it uniformly, then passing through the overflow discharge gate that setting up on the mill basin to discharge, after that enter into next operation procedure to process.
5.Coarse mineral was sunk on the bottom of grinding base, going on grinding and crushing, till the fineness could reach to standard floating on it.
