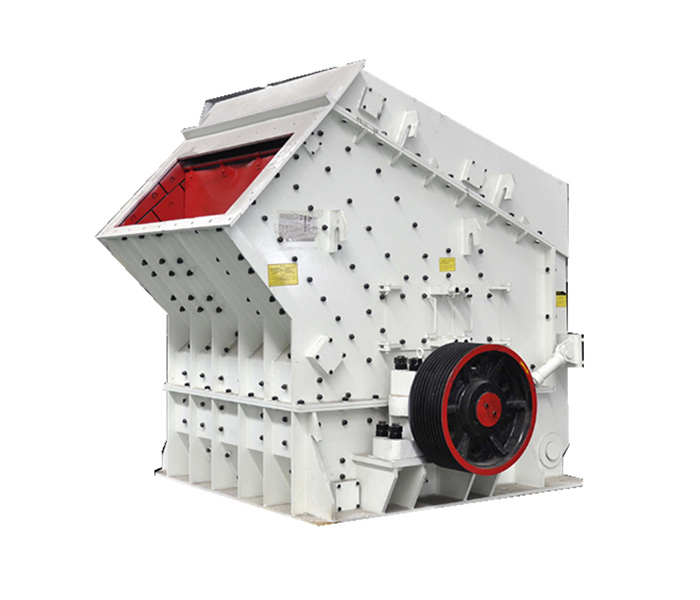

Impact Crusher

Description:Impact Crusher can crush the large, medium and small size materials with max feed size less than 500mm and compression strength less than 350Mpa. Presently, by practices, its comprehensive function is superior to the cone crusher and the hammer crusher.

Application:metallurgy, mine, cement, chemical engineering, fire resistant materials, ceramics and other industrial sectors,

Capacity:10-250t/h
Send Email Get A Quote

Feature

  • The impact crusher is more effective to deal with wet material and prevent material clogging.
  • Applicable to a wider range of materical hardness.
  • It can flexibly adjust the grain strength.
  • Grinding small,high metal utilization rate.
  • The replacement of spare parts is easy and the maintenance cost is reduce

Working Principle

Impact crusher is a kind of stone crusher using impact energy. After turn on,the motor drives the rotor rotate at a high speed. When the material get into the blow bar working area,they will be stroke by the blow bar and thrown to the impact devices around the rotor.The material will come out from the discharge hole until they are crushed to the required size. The clearance between the impact rack and the rotor can adjust the size and shape of the end product.

Technical Parameter

Model Specification Feed opening size (mm) Max.Feeding size(mm) Capacity
(t/h)		 Motor Power
 (kw)
PF-1007 Φ1000*700 400x730 ≤250 15-60 55
PF-1010 Φ1000*1050 400x1080 ≤300 50-90 75
PF-1210 Φ1250*1050 400x1080 ≤300 70-130 110
PF-1212 Φ1250x1200 400X1250 ≤300 70-140 132
PF-1214 Φ1250x1400 400X1430 ≤300 90-180 132
PF-1315 Φ1300*1500 680X1520 ≤350 120-250 200
PF-1320 Φ1300X2000 680X1570 ≤500 160-350 280

*just for reference
