Floatation Machine-Gongyi City Yuxiang Heavy Machinery Co.,Ltd

Feature

Floatation machine uses automatic control system, easy to operate, the product is guaranteed.
Floatation machine adopts special wear-resistant material, light and reliable, the service life of the equipment will also be extended.
Large processing capacity, high sorting precision, high production efficiency, low energy consumption, low operating cost.
Process flow diversification, for the choice of coal quality, according to the actual situation to choose the rough or select process, the operation is more flexible.

Working Principle

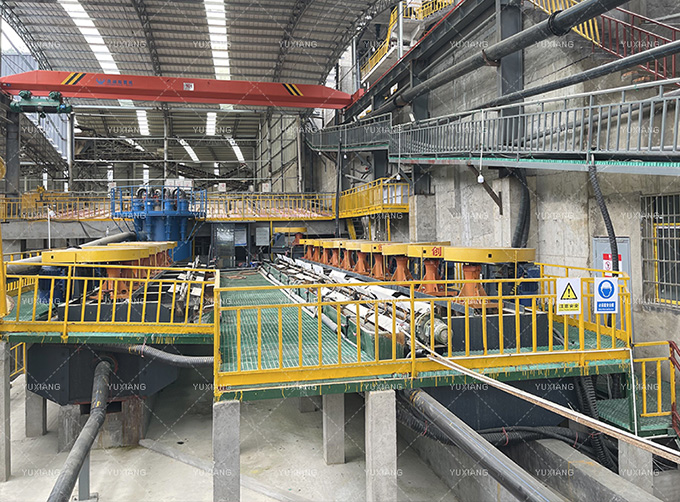

Floatation Machine is usually a continuous process by a few tanks, dozens of tank floatation machine connection, including roughing, scavenging, concentration operations. The use of floatation machine should meet the following requirements about equipment and processes, varies parts are complete and intact. Machines function normally and achieve the required aeration rate. Motor drives impeller rotating through belt and pulley. On the one hand, the machine inhaled enough air mixed with slurry, on the other hand, stirring the mixture of pulp and pharmaceutical. At the same time, refinement of the bubble, the particles adhere to the bubbles on the role of reagents and float to the slurry surface.

Technical Parameter

Model		SF0.37	SF0.7	SF1.2	SF2.8	SF4
Tank Volume(m³）		0.37	0.7	1.2	2.8	4
Impeller Dia(mm)		300	350	450	550	650
Capacity(m3/min)		0.2-0.4	0.3-0.9	0.6-1.2	1.5-3.5	0.5-4
Impeller Rotate Speed(m³/min)		352	400	312	268	238
Motor	Model	Y90L-4	Y100L2-4	Y132M2-6	Y160L-6	Y180L-6
		Y90S-4	Y90S-4	Y90S-4	Y90S-4	Y90L-4
	Power(kw)	1.5	3	5.5	11	15
		1.1	1.1	1.1	1.1	1.5
Overall Dimension(mm)		700700750	900820950	11001100 1100	17001600 1150	18502050 1200
Unit Weight（kg)		468	600	1373	2338	2660

*just for reference
