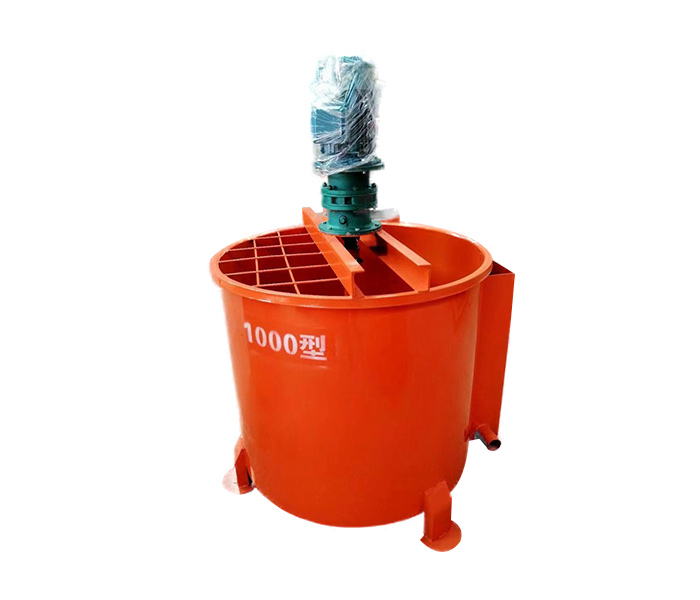

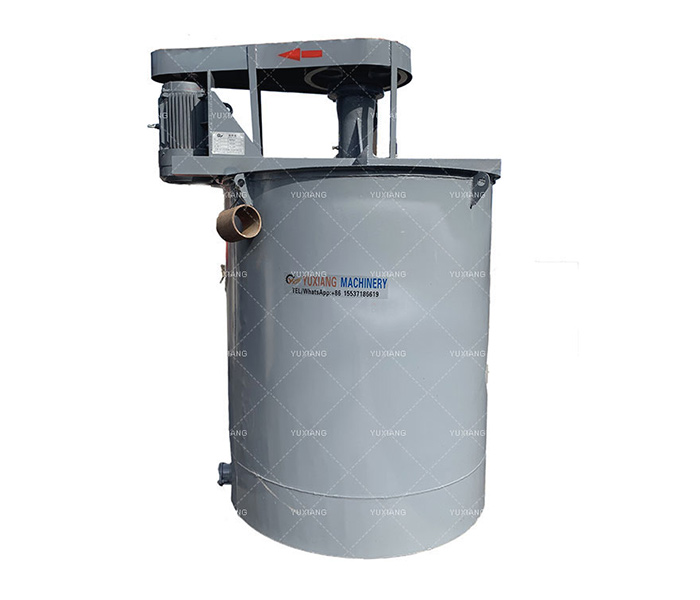

Agitation Tank

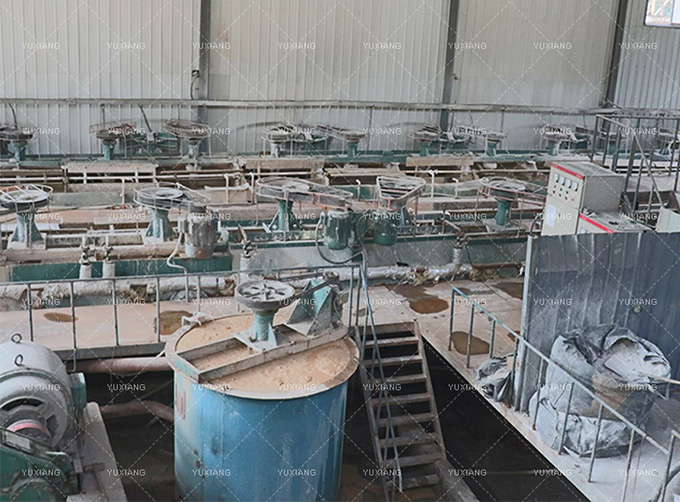

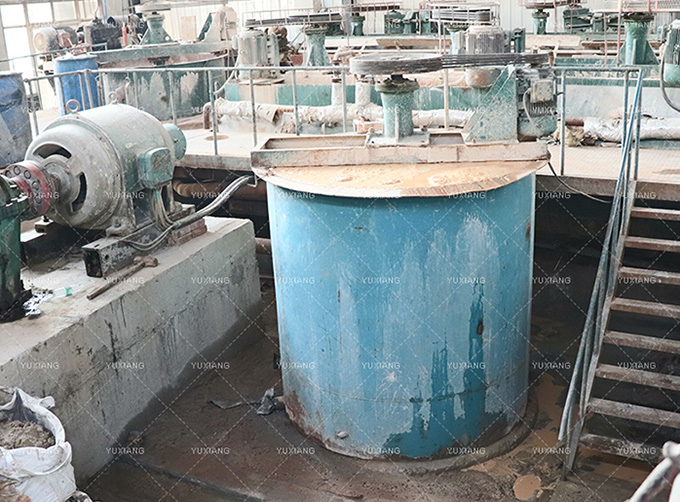

Description: The agitation barrel is used to mix the pulp with chemicals,preparing for floatation separation.The agitation tank is mainly applied in slurry stirring before flotation,chemical and construction industry,cyanide chemical plant,sewage treatment plant,and coal plant, etc.

Application: It is suitable for all kinds of metallic minerals, mainly used for mixing before flotation to make the reagent and pulp fully mixed, also can be used for stirring other non-metallic minerals.

Send Email Get A Quote

Advantages

The stirring blade is fan-shaped and has a large contact area with the medium.
Strong agitation capability;
Stable operation,convenient maintenance;
Energy saving.

Working Principle

When the machine works,under the rotation of the impeller,the ore pulp and the reagents will have big and small circulation,and they will be evenly mixed,and the mixed suspension liquid will be discharged from the overflow port.

Technical Parameter

Model	Tank inside size		Effective volume(m3)	Blender
Model	Diameter(mm)	Deep(mm)	Effective volume(m3)	Diameter(mm)	Rotate speed(r/min)
XB-750	750	750	0.26	240	530
XB-1000	1000	1000	0.58	240	530
XB-1200	1200	1200	1.14	400	320
XB-1500	1500	1500	2.2	400	320
XB-2000	2000	2000	5.46	550	230
XB-2500	2500	2500	11.2	650	200
XB-3000	3000	3000	19.1	700	210
XB-3500	3500	3500	30	850	230

*just for reference
