Main Equipment:
1.Vibrating feeder
2.Jaw Crusher
3.Symons cone crusher
4.Circular vibrating screen
5.Electric control cabinet
Raw Material:River pebble
Capacity:100 t/h
Output Size:0-8.5mm,8.5-11.9,11.9-18.5,18.5-24.9mm

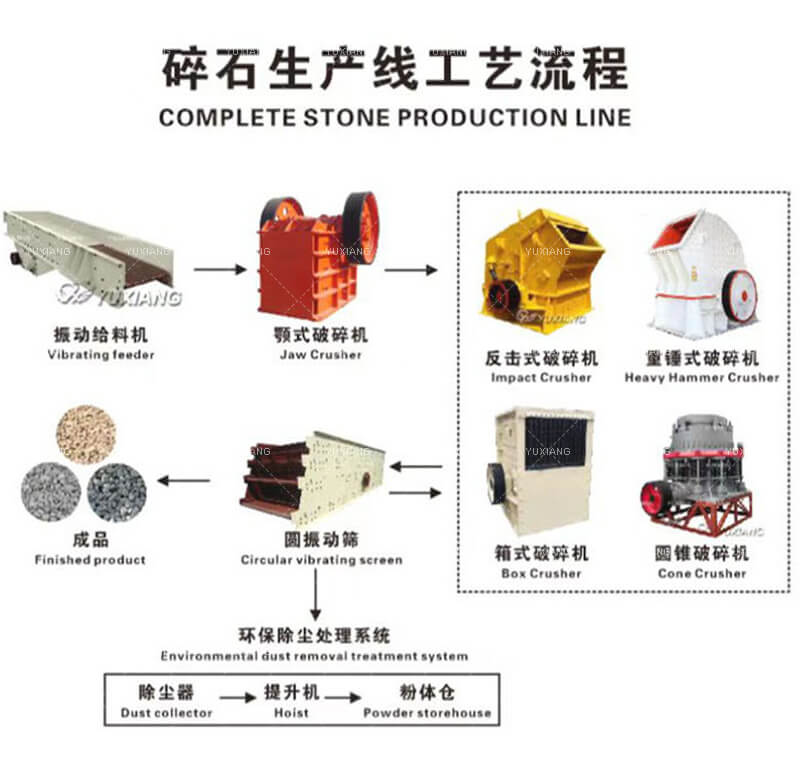

River Pebble Crushing Plant
Step 1: Feeder:The stone will be placed on the feeder.
Step 2:Jaw Crusher:The stone in the hopper are transported to the jaw crusher by a vibrating feeder for coarse crushing.
Step 3:Cone Crusher:The first crushed material will be transport to the second crusher(cone crusher)for fine crushing by belt conveyor.
Step 4:Vibrating Screen:The material has reached the granularity is transported to the vibrating screen by a belt conveyor and screened into four size materials 0-8.5mm,8.5-11.9,11.9-18.5,18.5-24.9mm
Note:It can adjust the discharging size of the cone crusher and replace the vibrating screen to get different final product sizes.
It is applied in the crushing and screening working of movable materials in mining, quarry, mixing and batching plant, road and building construction, highway, railway and subway, and water conservancy etc. It is easy operation and maintenance, it can customize the most suitable solutions according to your limestone conditions and final product requirements doe the plant.
