Main equipment
Vibrating Feeder
Primary jaw crusher
Second fine jaw crusher
vibrating screen
ball mill
spiral classifier
shaking tables
Raw material:lead zinc oxide, copper oxide
Capacity:20TPH
Feed Size:400mm
Project location: Romania
Lead Zinc Copper Ore Process Plant In Morocco

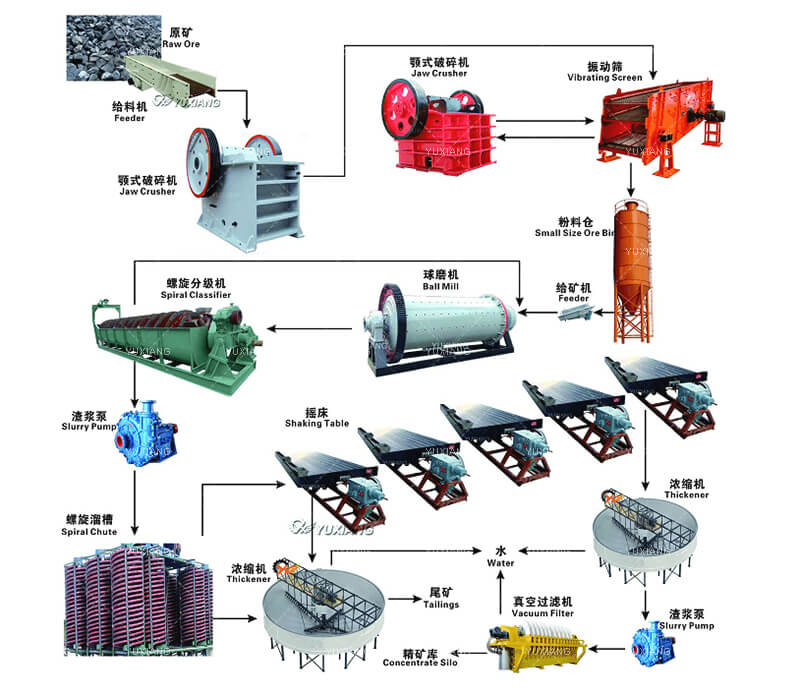

Step1:Jaw Crusher: The raw materials are sent to the jaw crusher by coarse crushing by the vibrating feeder.
Step 2:Vibrating Screen:The first crushed materials are transported by belt conveyor to the vibrating screen for screening.
Step 3:Fine Jaw Crusher:The stone that meets the particles size is sent to the fine jaw crusher for secondary crushing
Step 4:Ball Mill:The Copper ore material crushed by the crushing section enters ball mill for grinding and pulverization
Step 5:Spiral Classifier:the classifier can classify and screen the copper ore to release the required ore powder.
Step 6:Shaking Table:the middling of 1st stage shaking table will go to 2nd stage shaking table to concentrate again, it will get higher copper concentrate ore from the two shaking tables.
